V-by-One-HS-KIT

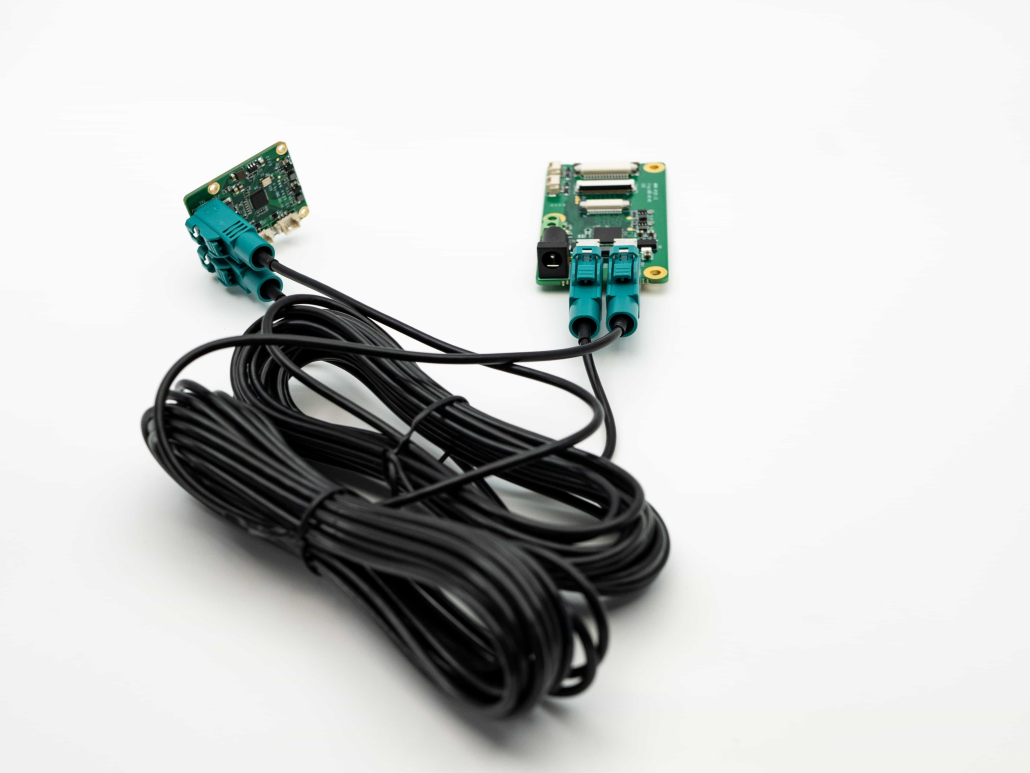

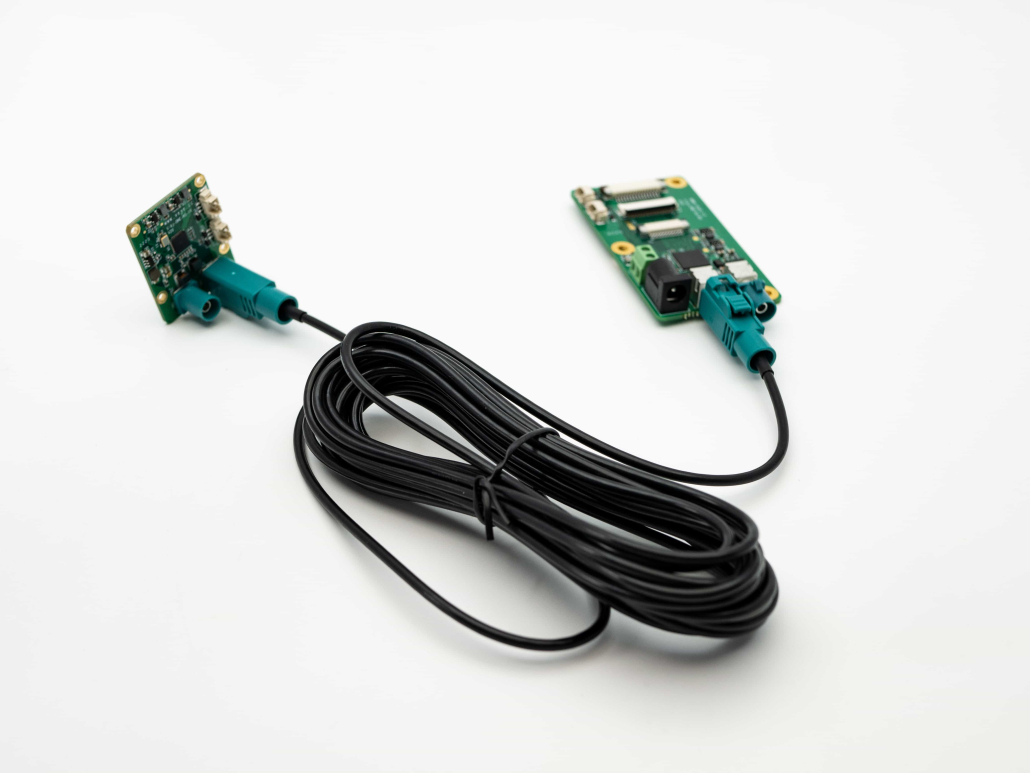

V-by-One-HS-KIT MIPI Remote Transmission Development Kit

Support RAW-MIPI Series Camera，MV-MIPI Series Camera
Support Raspberry Pi 3/3B/3B+/4B/Zero/Compute Module
Support Nvidia Jetson Nano B01 Dev Kit
Support Nvidia Jetson Xavier NX Dev Kit
Support Nvidia Jetson ORIN Dev Kit
Support Nvidia AGX Dev Kit
Support Nvidia TX2 Dev Kit
Part NO.
- V-by-One-HS-KIT

V-by-One-HS-KIT

Document

wiki document

Serializer Thechnical Detail

Thechnical Detail

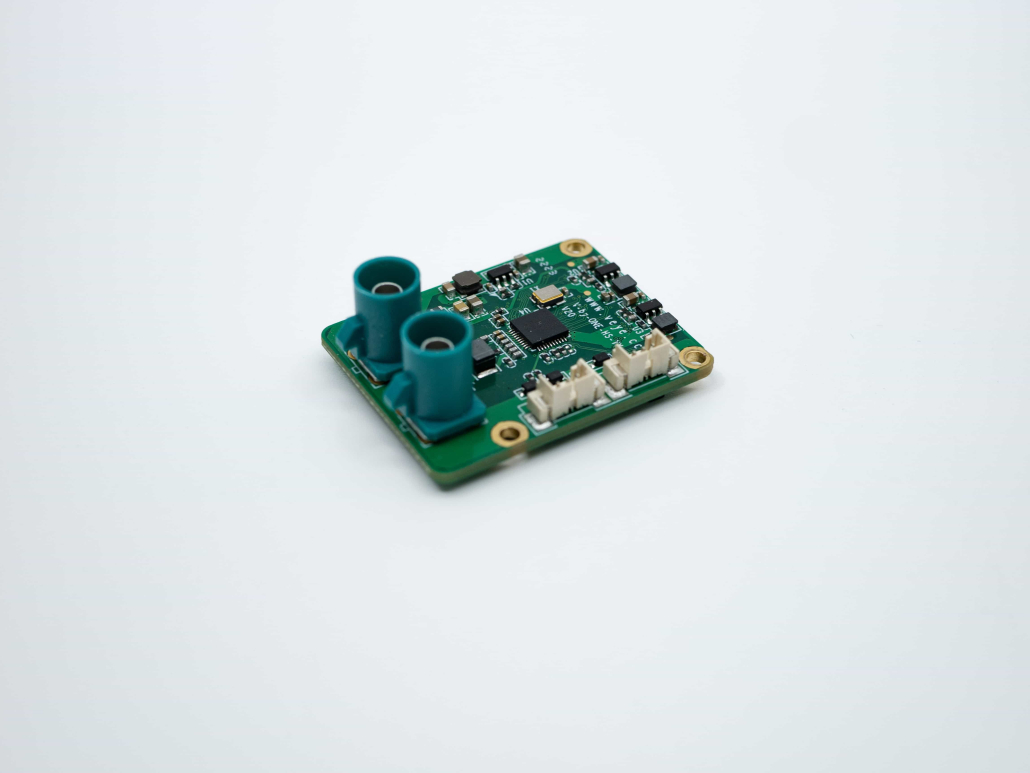

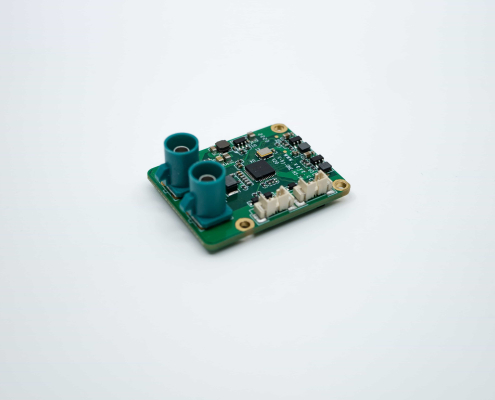

V-by-One-HS-TX serializer
IC PART NO.	THCV241A-P
Function	MIPI CSI-2 to V-by-One HS conversion
Input Compatibility	MIPI CSI-2
Output Compatibility	V-by-One HS standard version1.5
Interface
MIPI INPUT	MIPI CSI-2，Supports up to 1.5Gbps/lane，Supports 2 or 4 lanes
MIPI INPUT Connector	FFC socket（J1 / J2）
V-by-One HS OUTPUT	V-by-One HS，Supports up to 4.0Gbps（effective rate 3.2Gbps），Supports 1 or 2 lanes
V-by-One HS OUTPUT Connector	FAKRA Z Compatibility ( J3 / J6)
GPIO	2 output，1 input
Communication Interface	Sub link
General
Operating Conditions(Bare PCB)	Operating guarantee temperature：-20℃~85℃, Humidity 95% or less, non-condensing
POC DC Power Input	DC 9-15V （Only J2 is powered by POC）
Dimension	29mm*37mm

Deserializer Thechnical Detail

Thechnical Detail

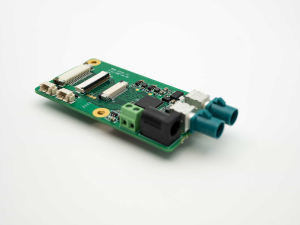

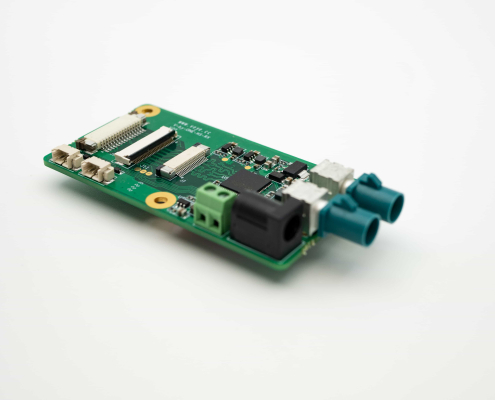

V-by-One-HS-RX deserializer
IC PART NO.	THCV242A-P
Function	V-by-One HS to MIPI CSI-2 conversion
Input Compatibility	V-by-One HS standard version1.5
Output Compatibility	MIPI CSI-2
Interface
MIPI OUTPUT	MIPI CSI-2，Supports up to 1.5Gbps/lane，Supports 2 or 4 lanes
MIPI OUTPUT Connector	FFC socket（J7 / J9 / J11）
V-by-One HS INPUT	V-by-One HS，Supports up to 4.0Gbps（effective rate 3.2Gbps），Supports 1 or 2 lanes
V-by-One HS INPUT Connector	FAKRA Z Compatibility ( J12 RX1 / J13 RX0)
GPIO	2 output，1 input
Communication Interface	Sub link
General
Operating Conditions(Bare PCB)	Operating guarantee temperature：-20℃~85℃, Humidity 95% or less, non-condensing
POC DC Power OUTPUT	DC 9V （Only J13 RX0 is powered by POC）
DC POWER INPUT	DC12V （J1 / J2）
Dimension	75mm*40mm
